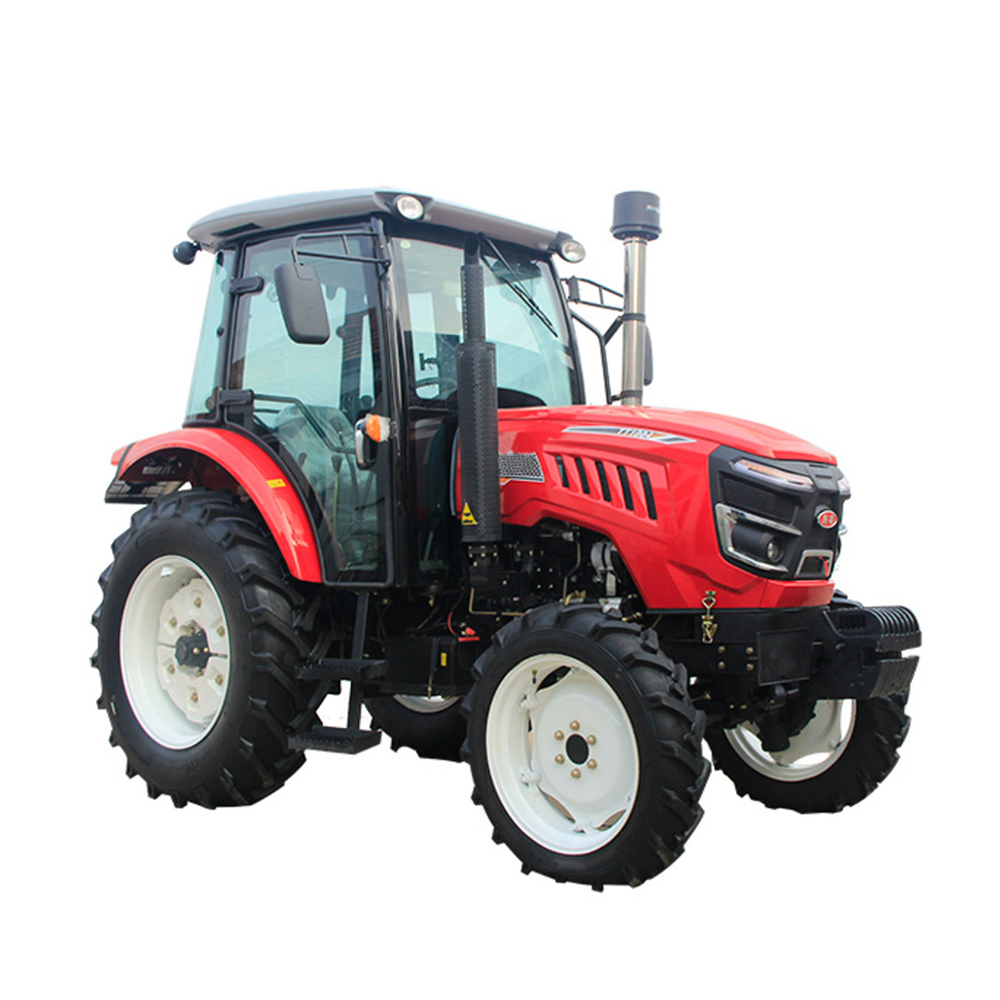

MD804 Wheeled Tractor
share
Rated power(kw): 58.8
P.T.O Shaft rotating speed(rpm): 540/760
P.T.O Shaft rotating speed(rpm): 540/760
Detail
| SPECIFICATION | |
| Model | MD804 |
| Engine model | YN4PLK080-34CR |
| Rated engine power(KW) | 58.8 |
| Rated rotation speed(r/min) | 2400 |
| Overall dimensions(mm) | 4110*2010*2580 |
| Wheel base(mm) | 2070 |
| Wheel track (mm) rear wheel | 1320-1640 |
| Minimum ground clearance(mm) | 380 |
| Tire specification(front wheel) | 8.3-24 |
| Tire specification(rear wheel) | 14.9-30 |
| Gearbox | 12+12 |
| Main drive | Spiral bevel gear pair |
| Final drive | Single-stage planetary gear |
| Steering system | Fully hydraulic steering |
| Braking model | Disc（single-slice),hydraulic booster |
| Suspension device type | Rear three-point suspension |
| Rotation speed of power-output shaft(r/min) | 540/760 |
