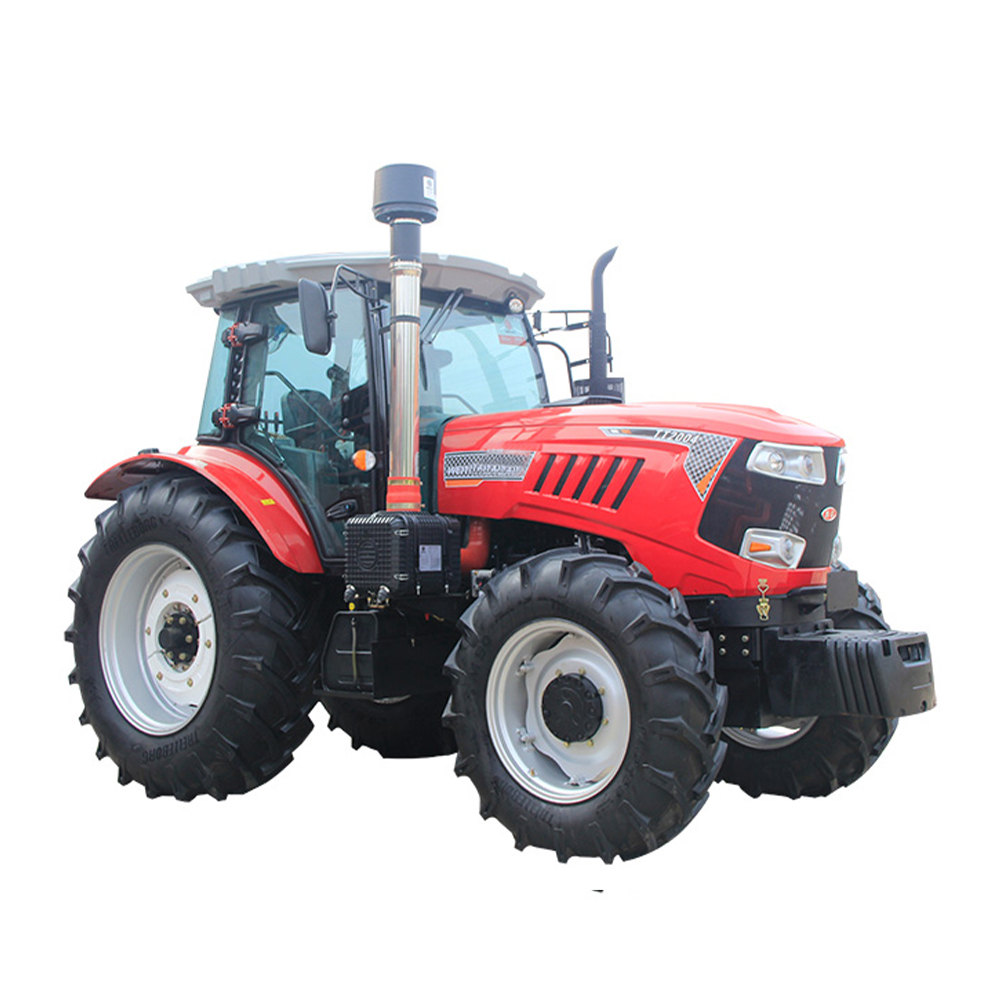

MD1604-A Wheeled Tractor
share
Rated power(kw): 118
P.T.O Shaft rotating speed(rpm): 720/760
P.T.O Shaft rotating speed(rpm): 720/760
Detail
| SPECIFICATION | |
| Model | MD1604-A |
| Engine model | WP6G160E330 |
| Rated engine power(KW) | 118 |
| Rated rotation speed(r/min) | 2200 |
| Overall dimensions(mm) | 5150*2250*2990 |
| Wheel base(mm) | 2610 |
| Wheel track (mm) rear wheel | 1660-2060 |
| Minimum ground clearance(mm) | 370 |
| Tire specification(front wheel) | 12.4-24 |
| Tire specification(rear wheel) | 16.9-34 |
| Gearbox | 4*(2+1)*2 |
| Main drive | Spiral bevel gear pair |
| Final drive | Single-stage planetary gear |
| Steering system | Fully hydraulic steering |
| Braking model | Disc（single-slice),hydraulic booster |
| Suspension device type | Rear three-point suspension |
| Rotation speed of power-output shaft(r/min) | 720/760 |
