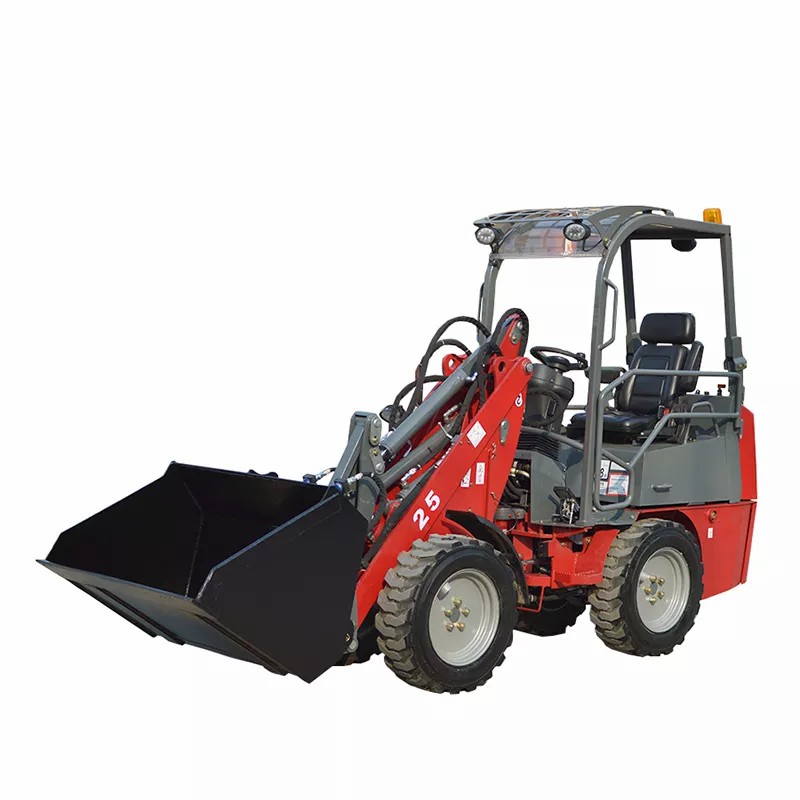

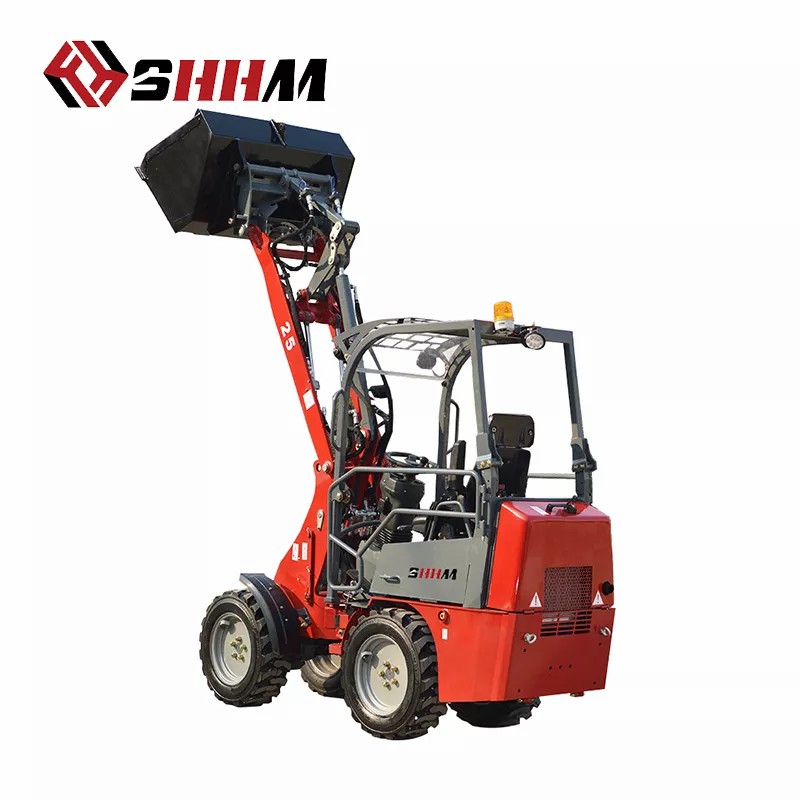

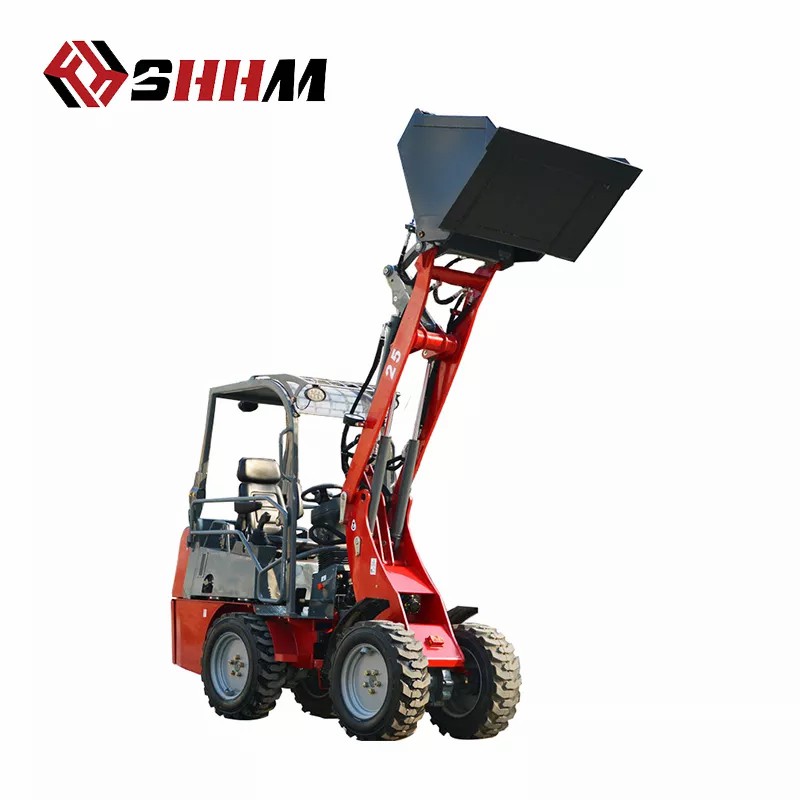

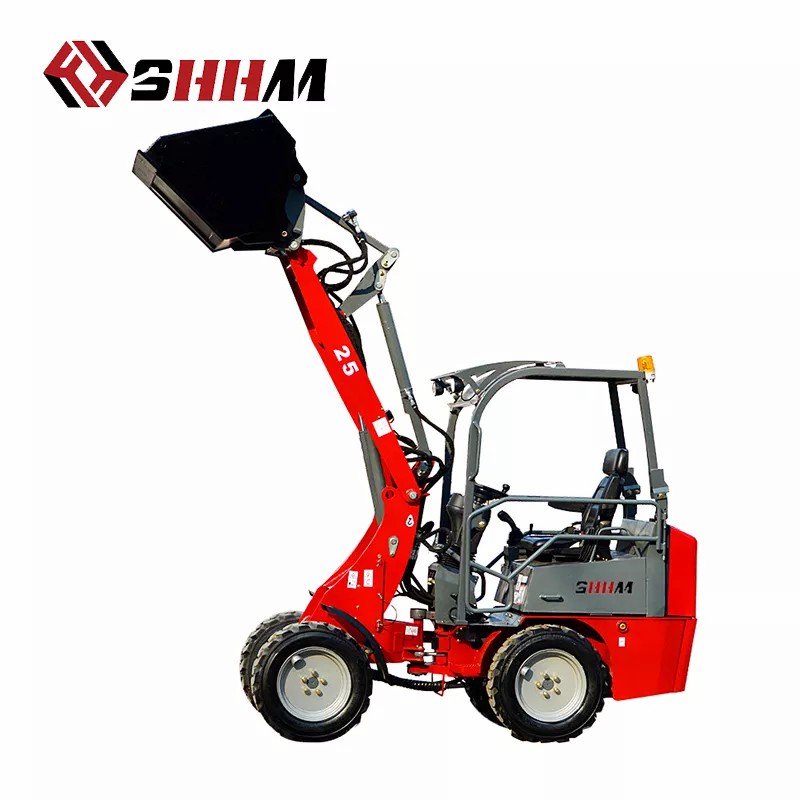

ZL06 Wheel Loader
share
Detail
Features:
Yanmar brand Engine;
4 Wheel Drive;
Optional with Closed Cabin, Roll Bar, Canopy;
Double Floating Functions;
Optional Quick Coupling System;
Hand brake and pedal brake system;
Side-Tilting Cabin;
Adjustable Steering Wheel;
Multiple Attachments for customers' choice;
Main Components:
Danish Sauer Danfoss brand Hydraulics System;(Steering Gear, Pumps, Motors, etc.);
ltalian HC brand Multi-way Valve;
German Gessmann brand Joystick;
German Knott brand Brake;
German Argo brand Hydraulic Oil Filters;
ltalian Fast brand Quick Couplers;
| SPECIFICATION | |
| Model | ZL06 |
| Extermal dimensions | 3615*930*2192mm |
| Operating weight | 1360Kg |
| Max travel speed | 14km/h |
| Max. Dump Height | 3593mm |
| Rated Operating Capacity(Bucket/Fork) | 809Kg/527Kg |
| Tipping Height | 2030mm |
| Wheel Base | 1345mm |
| Tum Radius (Inside) | 865mm |
| Turm Radius (outside) | 2210mm |
| Max.Turn Radius | 1 829mm |
| Bucket Capacity | 0.3-0.48m3 |
| Working Oil Flow | 35L/Min |
| Tracking Oil FIow | 90L/Min |
