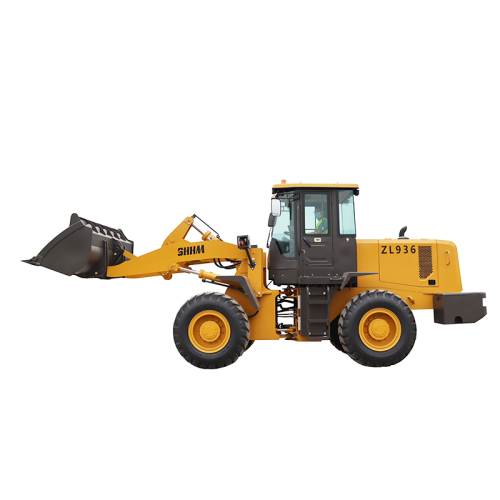

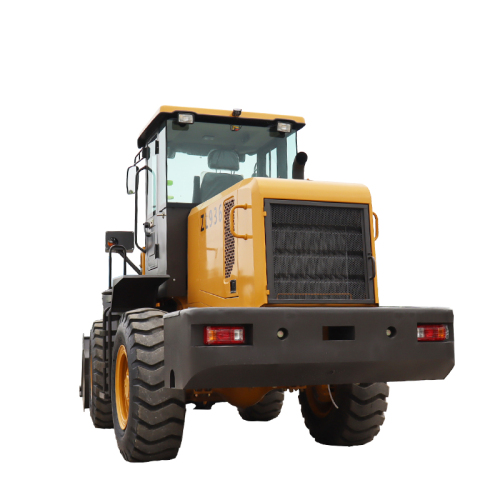

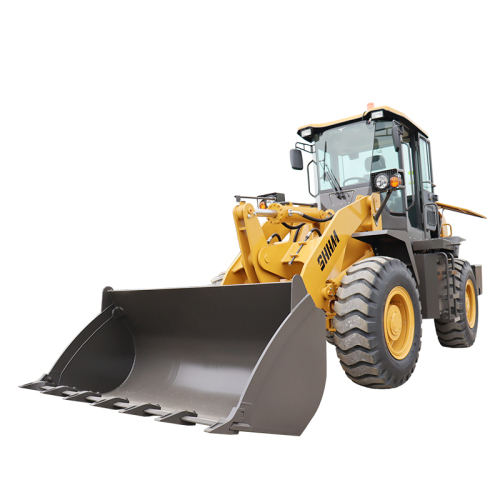

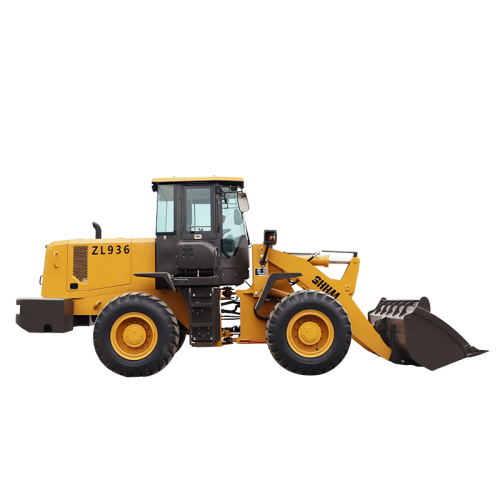

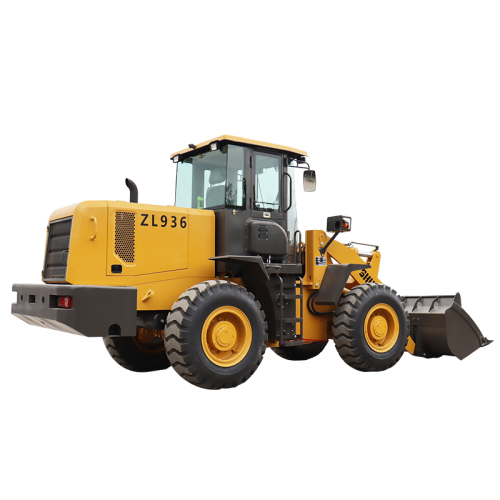

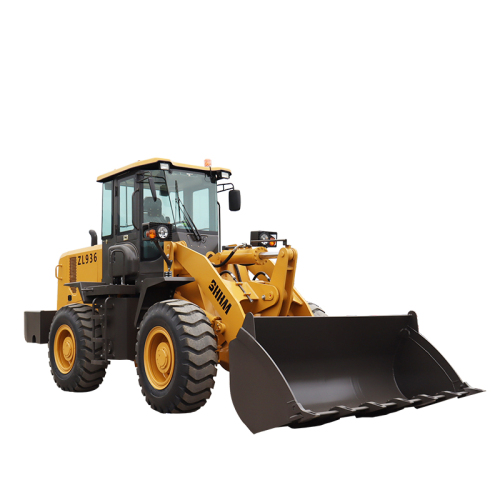

Detail
The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
309° panoramic visibility gives the operator a very comfortable work environment in the cab.
Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.
Single layer radiator and big range fin spacing for high efficiency and easy maintenance.
| SPECIFICATION | ||
| Performance | Rated load | 3000KG |
| Overall weight | 9600KG | |
| Rated bucket capacity | 1.8m3 | |
| Maximum tractive force | 97KN | |
| Maximum breakout force | 127KN | |
| Overall dimension (L×W×H) | 6890*2430*3070mm | |
| Maximum grade ability | 30℃ | |
| Maximum dump height | 3100mm | |
| Maximum dump reach | 1006mm | |
| Minimum turning radius | 5097mm | |
| Engine | Model | Deutz WP6G125E22 |
| Type | lnline water cooled, four stroke | |
| No. of cylinder-bore/stroke | 6－108×125mm | |
| Rated power | 92kw | |
| Maximum torque | 500N.m | |
| Min fuel-consume ratio | ≤210g/kw.h | |
| Transmission system | Torque converter | YJ375-X |
| Gearbox mode | Power shift normally engaged straight gear | |
| Gear shift | 4 forward shift 2 reverse shift | |
| Maximum speed | 38km/h | |
| Drive axles | Main reducing spiral | bevel gear grade 1reduction |
| Decelerating mode | Bevel gear grade I reduction | |
| Wheel base (mm) | 2660mm | |
| Wheel tread | 1800mm | |
| Minimum ground clearance | 400mm | |
| Hydraulic system | System working pressure | 16.5MPa |
| Boom lifting time | 4.83s | |
| Total time | 9.15+0.5s | |
| Fuel tank capacity | 156L | |
| Function of leveling automatically | Yes | |
| Brake system | Service brake | Air assist disc brake on 4 wheels |
| Parking brake | Manual parking brake | |
| Type specification | 17.5-25 | |
| Tyre | Front tyre pressure | 0.4Mpa |
| Rear tyre pressure | 0.35Mpa | |
