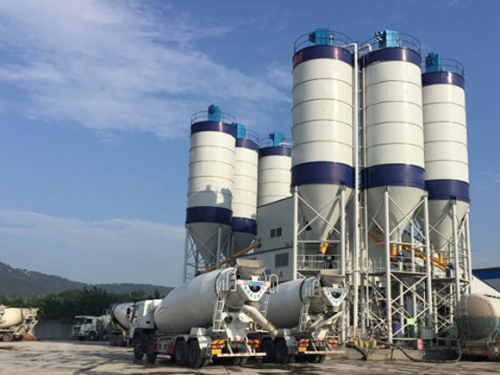

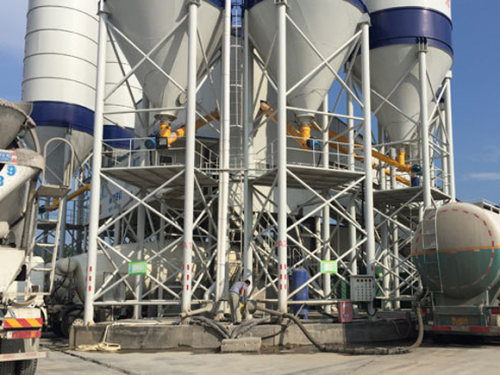

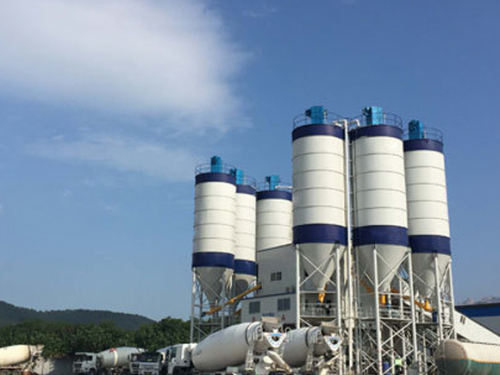

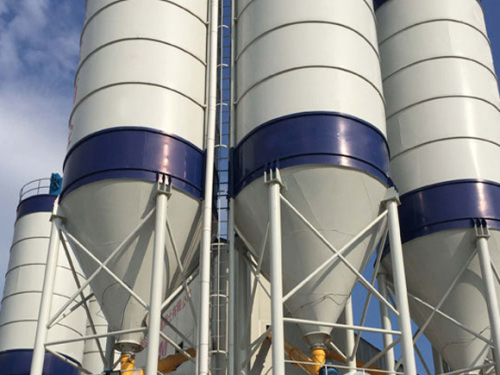

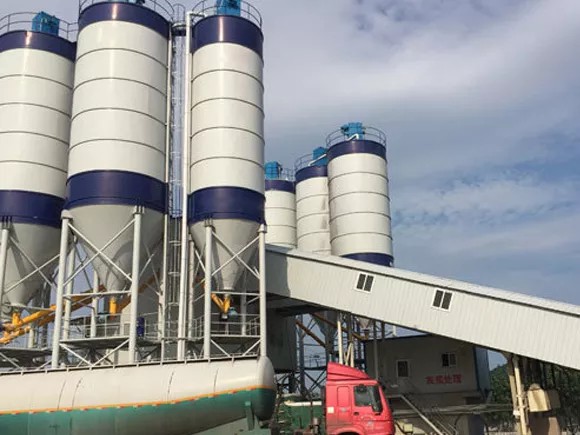

1. Descriptions of SHS180 Concrete Batching Plant :
The output of SHS180 series concrete mixing plant is 180m3 / h.The aggregate system uses a large belt width herringbone material, which can be set according to the needs of the pedestrian walkway security. It’s the best choice for Commercial concrete.
2.The Features of SHS180 Concrete Batching Plant:
1). Modular design structure, which is easy to install and disassemble
2). With JS4000 or SICOMA Concrete Mixer, high efficiency productivity and mixing performance
3). PLD4800 aggregate batcher and individually weigh system will improve the efficiency of weighing system.
4). Accuracy weighing system, water, ash, aggregate, cement will be weighing accurately, which improves the quality of concrete.
5). low pollution
| Specification | Unit | Value |
|---|---|---|
| Productivity | m3/h | 180 |
Capacity of Mixer | m3 | 3 |
Discharge Height | m | 3.8 |
Aggregate Bin | Quantity | 4 |
Capacity of Aggregate Bin | m3 | 20 |
Max. Weighing Value of aggregate | kg | 2x4000 |
Max. Weighing Value of cement | kg | 1800 |
Max. Weighing Value of water | kg | 800 |
Max. Weighing Value of additive | kg | 50 |
| Feeding Type | / | Belt |
| Cement Silo | / | Optional |
| Cement Screw Conveyor | / | Optional |
| Control Mode | / | Auto Control |
