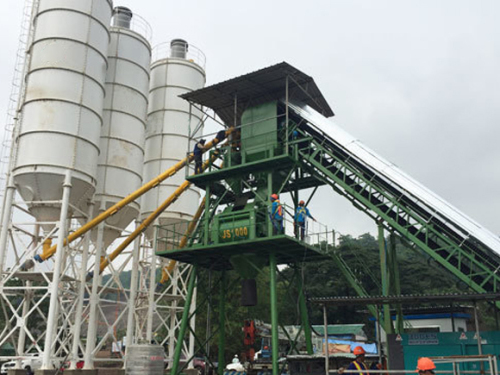

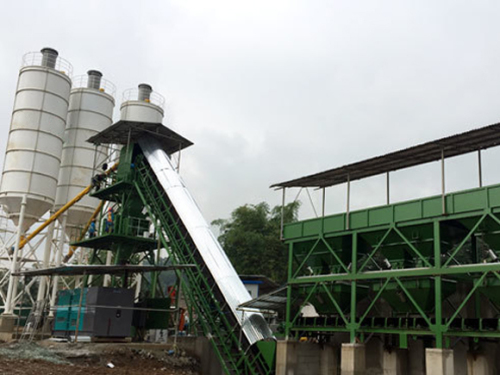

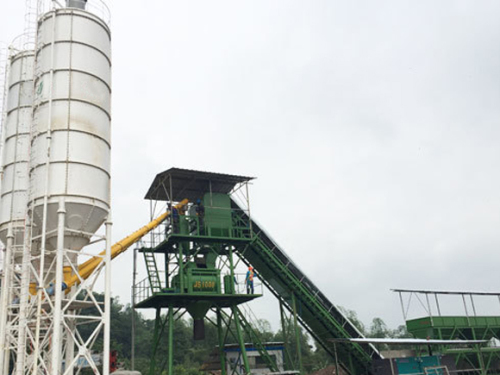

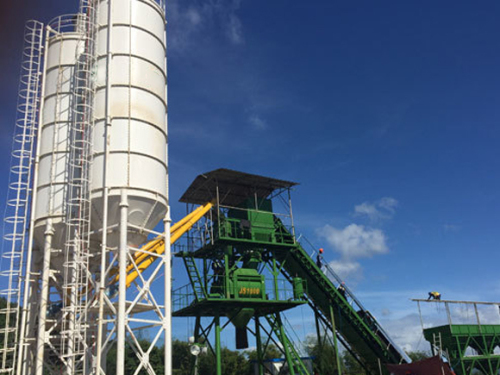

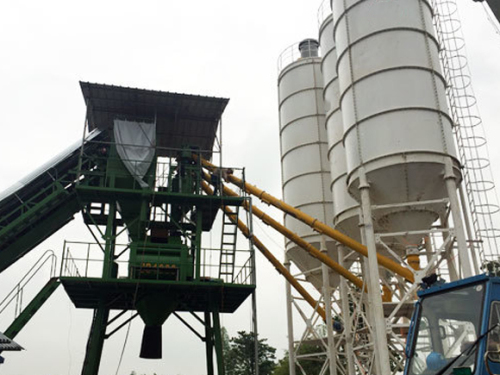

SHS60 Stationary Concrete Batching Plant

share
copy Link
Facebook
X
LinkedIn
Productivity 60m3/h
Capacity of Mixer 1.0m3
Discharge Height 3.8m
Feeding Type Skip Hopper
Whatsapp
Message
Detail

1. Description of SHS60 Concrete Batching Plant:

SHS60 series concrete batching plant belongs to compulsory and efficiency equipment, it can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency, it is widely used large and medium scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial concrete.

2. Short Features of SHS60 Concrete Batching Plant:

1). Adopts modular structure, easy to install and assembly and convenient to transport.

2). The mixing console adopts JS1000 twin shaft compulsory concrete mixer.

3). Measurement of components and control components are importing from USA, Japan, Germany.

4). Computer control system can keep the accuracy and stable measurement performance.

5). Good choice for commercial concrete




Specification

Unit

Value

Productivity

m3/h

60

Capacity of Mixer

m3

1

Discharge Height

m

3.8

Aggregate Bin

Quantity

3

Capacity of Aggregate Bin

m3

10

Max. Weighing Value of aggregate

kg

3000

Max. Weighing Value of cement

kg

600

Max. Weighing Value of water

kg

400

Max. Weighing Value of additive

kg

50

Feeding Type

/

Belt

Cement Silo

/

Optional

Cement Screw Conveyor

/

Optional

Control Mode

/

Auto control
